SINOTRUK HOMAN 4X2 CARGO TRUCK (5T)

Premium creating ultimate experience

In order to meet the market demand, SINOTRUK has launched a variety of competitive truck models through the continuous upgrading of products and services to meet the diverse needs of customers.

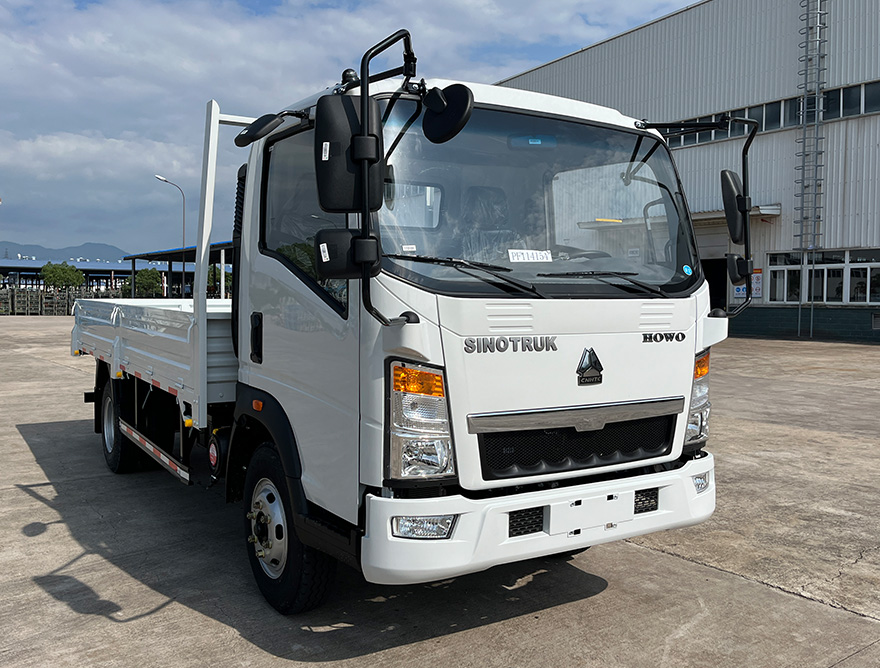

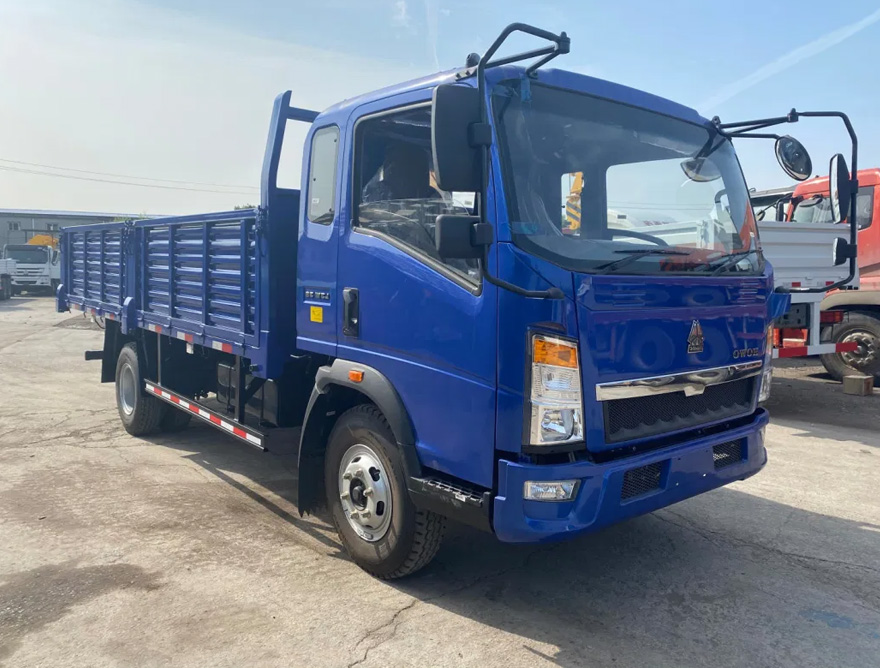

Howo 4x2 light cargo truck is also a kind of howo cargo truck. It is suitable for loading smaller products, and it is available for short distance transportation. This 4x2 light cargo truck with a low-powered engine and two seats cab, and the carriage size is 4200×2050×400mm. Other size of carriage can also be customized.

Specification of howo 4x2 cargo truck:

CABIN: Driving type 4x2   LHD

HW70 cab, with two seats and air condition, 70°hydraulically tillable to the front as attached photo for ref.

ENGINE:

Brand: SINOTRUK

Model: WD615.87

Type: 4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power（HP): 290

Emission standard: Euro Ⅱ

TRANSMISSION: HW15710, with 10 forward and 2 reverse

FRONT AXLE: HF9, 6000 KGS

REAR AXLE: HC16,16000 KGS

STEERING: ZF8098 power steering, hydraulic steering with power assistance

CLUTCH: Reinforced diaphragm clutch, diameter 430 mm

WHEELS&TYRES: 12R22.5 tubeless tyre, 7 pieces including one spare

CARGO BODY: 4200*2050*400mm

OVERALL DIMENSIONS: 5995*2150*2450mm

FUEL TANK: 400L

BRAKE:

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Field application

High Reliability

Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.

Engine

DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
