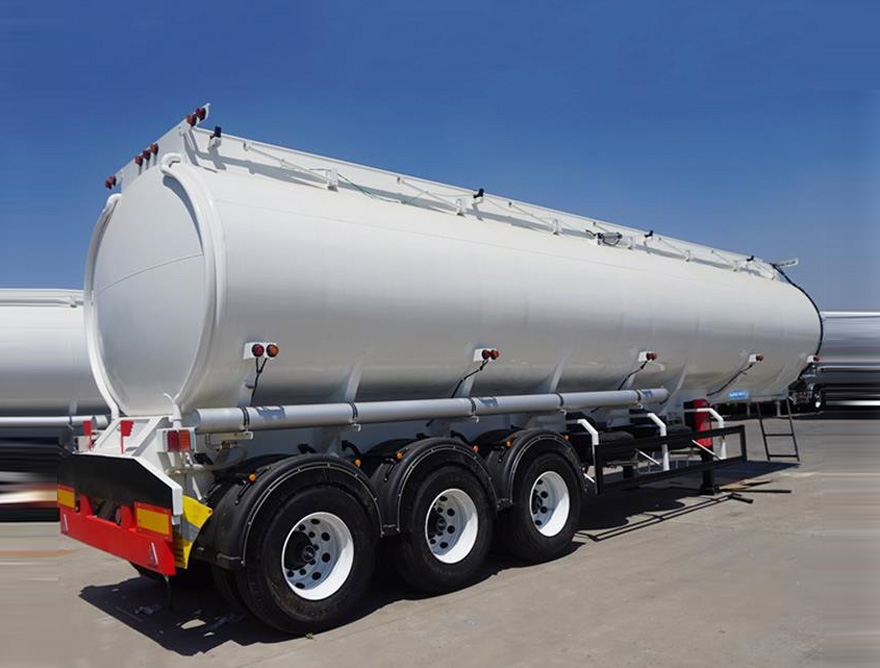

45CBM 3-AXLE CARBON STEEL FUEL TANK SEMI-TRAILER

45CBM 3-Axle Carbon Steel Fuel Tank Semi-Trailer Price in Ghana Specification:

Model : TANKER4500GHA

Dimension（mm） 13040*2500*3750 (Approx.)  Tare weight(kg) :12400 (Approx.)

Total volume(L) :45,000+3~5% ullage

Compartment number : 5 compartments with 5 pcs of 20’ manholes

(From front to rear: 9,000/9,000/9,000/9,000/9,000L+3~5% ullage)

Material：Carbon steel Q345；

Thickness：5mm/6mm (shell/dishend)

Main beam :Web t=6mm, bottom flange t=10mm

Fuel discharging hose :

Standard sizes：4 inch x5.8m（length）; Qty.：2 pcs

Bottom valve/Safety vale

Qty.: 5 pcs, located at bottom of each compartment, air-controlled

Air-control system One set for 5 compartments

Field application

High Reliability

Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.

Engine

DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
